Designet til CUBE Kathmandu Hybrid er klassisk elegant – velkjent. til og med – men under de rene linjene skjuler det seg en mengde innovasjon og smarte detaljer. Den kraftige Bosch CX-motoren og det integrerte 800Wh PowerTube-batteriet er bare begynnelsen. Efficient Comfort Geometry er utviklet rundt en dempegaffel med 100 mm vandring for bedre kontroll når underlaget blir røft. Integrerte kabler understreker rammens rene uttrykk, mens UDH-bakdropouten er robust, fleksibel og fremtidssikker. Og selvfølgelig: integrert kjedebeskytterfeste og den solide, elegante Integrated Carrier 3.0 – perfekt for å ta med alt du trenger på eventyrene dine.
Rammemateriale: Aluminium Superlite
Batteri: 800Wh
Høydepunkter

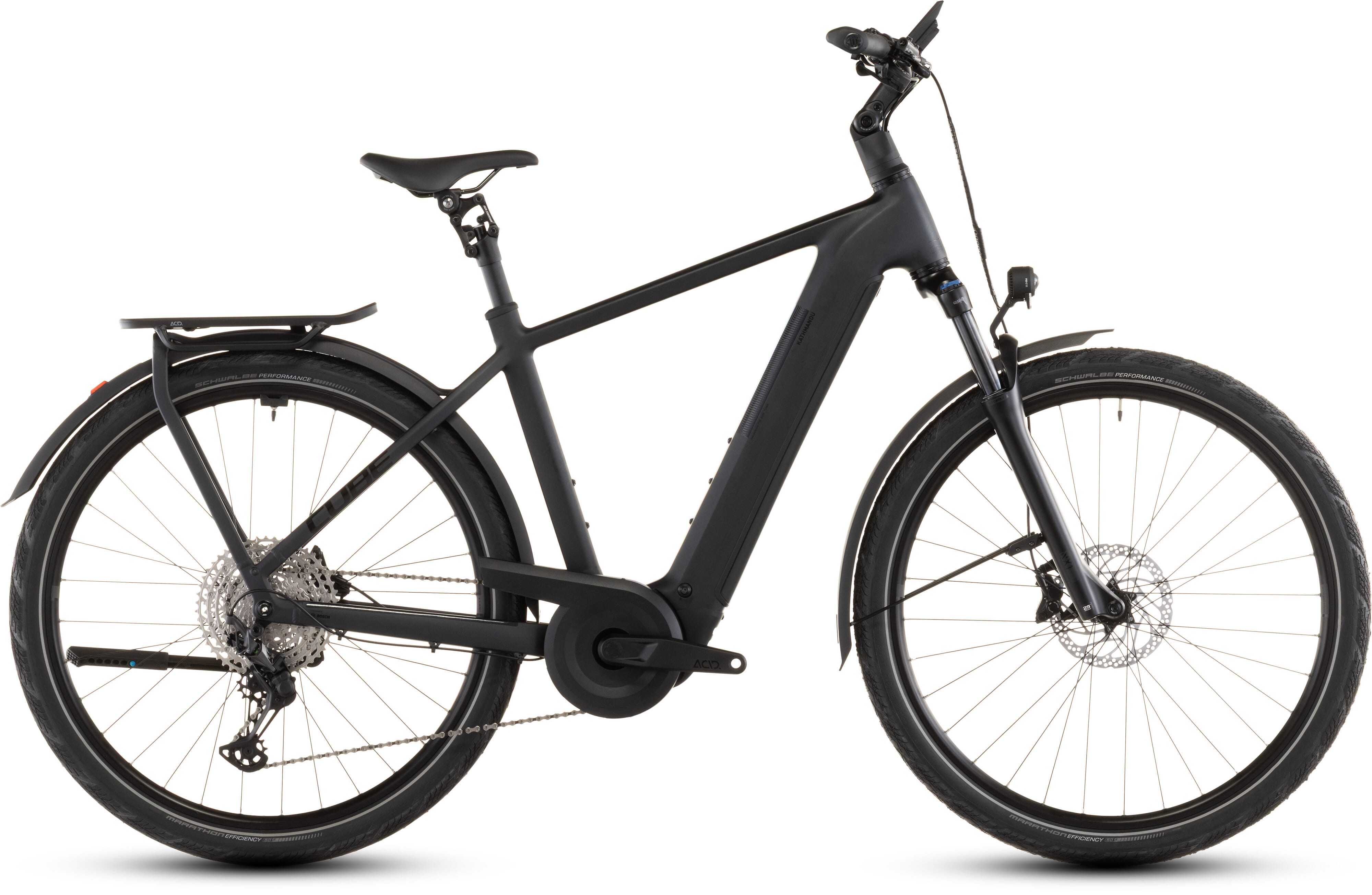

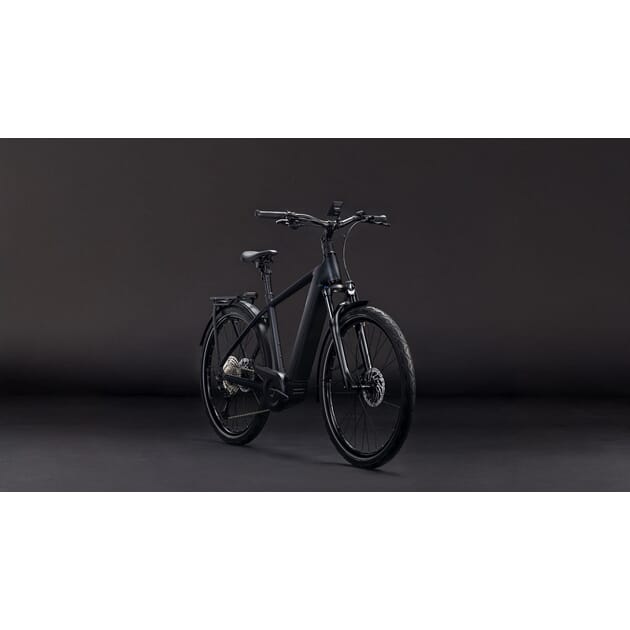

En CUBE-hybrid er passet ditt til frihet. Med kraftig Bosch CX-drift og CUBEs karakteristiske design har Kathmandu Hybrid Pro alt du trenger for å utforske mer. Utvid horisonten – komfortabelt og med stil.
Kathmandu Hybrid Pro handler om friheten ved å oppleve verden på to hjul, med et solid løft fra Bosch-systemet. De elegante linjene i Integrated Carrier 3.0 gir et robust fundament for bagasje og utstyr, uansett hvor turen går. Bosch CX-motoren og 800Wh PowerTube-batteriet er så sømløst integrert i rammen at du knapt legger merke til dem – før du begynner å tråkke. Da kommer Shimanos presise og brede XT 1x12-gir virkelig til sin rett, sammen med de kraftige 4-stemplede hydrauliske skivebremsene fra Shimano når det er på tide å roe farten. Med fullt utstyrsnivå inkludert, blant annet en svært komfortabel parallellogram-setepinne, gjenstår bare ett spørsmål: hvor går neste tur?
Spesifikasjoner
Ramme
Ramme:
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, fullt integrert batteri, IC 3.0, Advanced Internal Cable Routing, integrert seteklemme

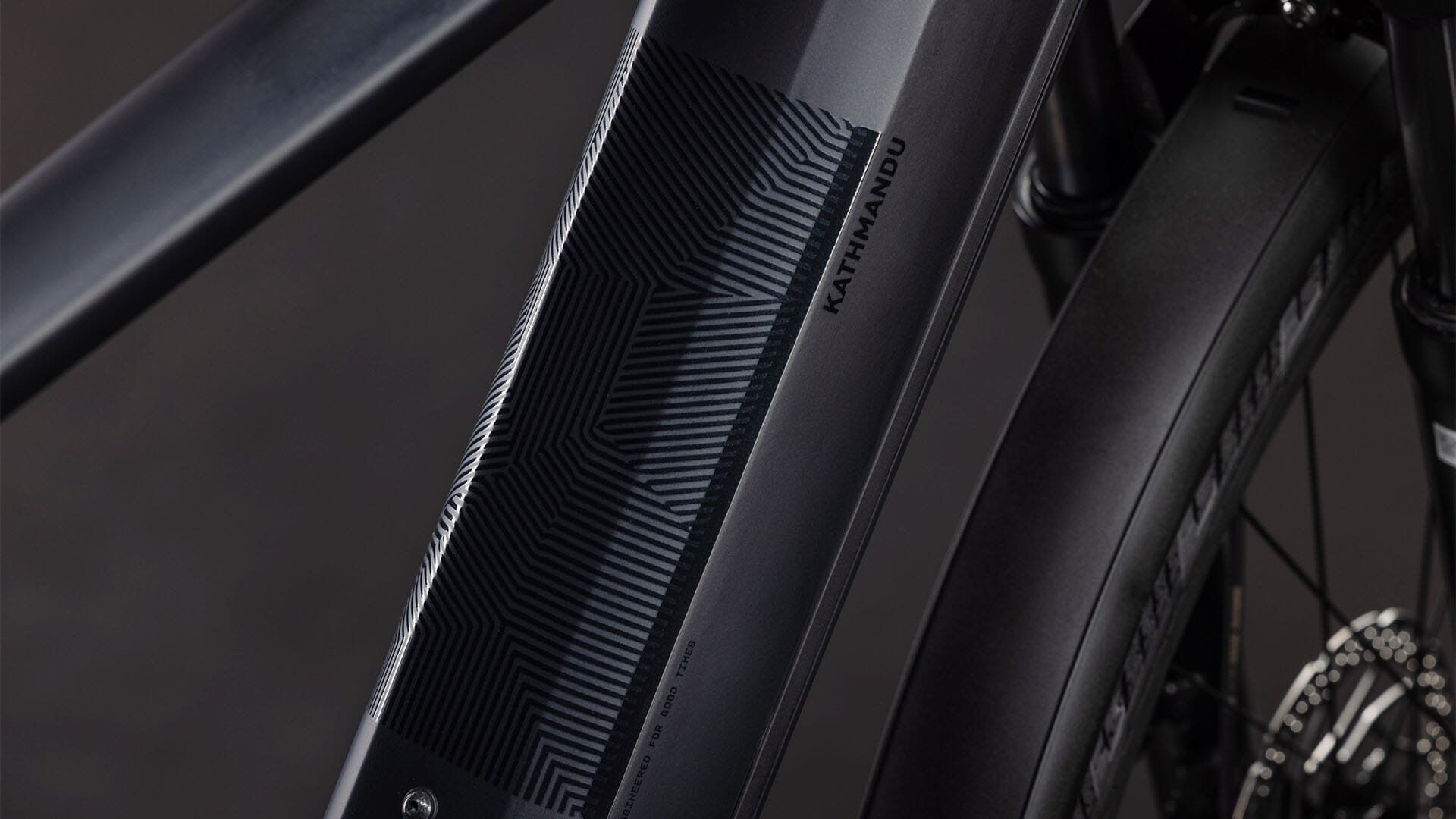

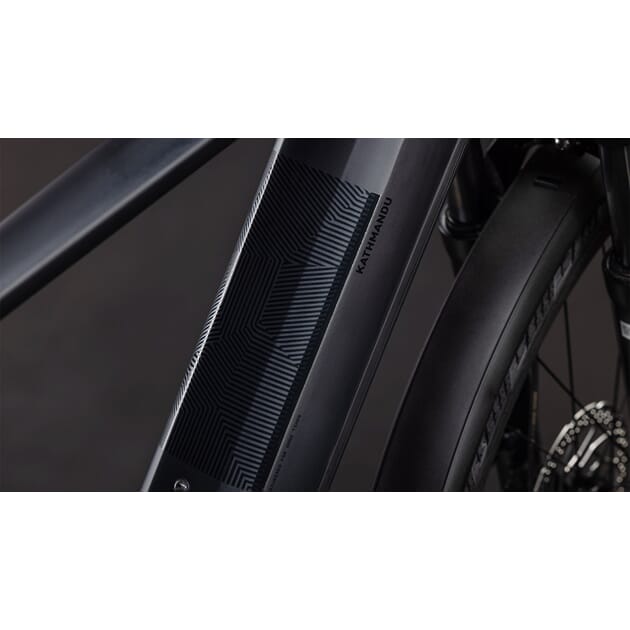

Fully Integrated Battery
The Fully Integrated Battery system tucks the power of Bosch's battery out of sight, safely inside the confines of your bike's downtube. Hidden beneath a splash and dust-proof cover and secured with a lock to prevent theft, it allows us to design beautiful e-bike frames that are as brilliantly functional as they are good to look at.
Advanced Internal Cable Routing
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? We came up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Modular Battery System
In many ways the battery is the heart of an e-bike. That's why, with our Modular Battery System, we've made a setup that's easy to use. You can charge the battery on or off the bike, and we've made room for even high capacity batteries. You'll wonder how you ever managed without it.

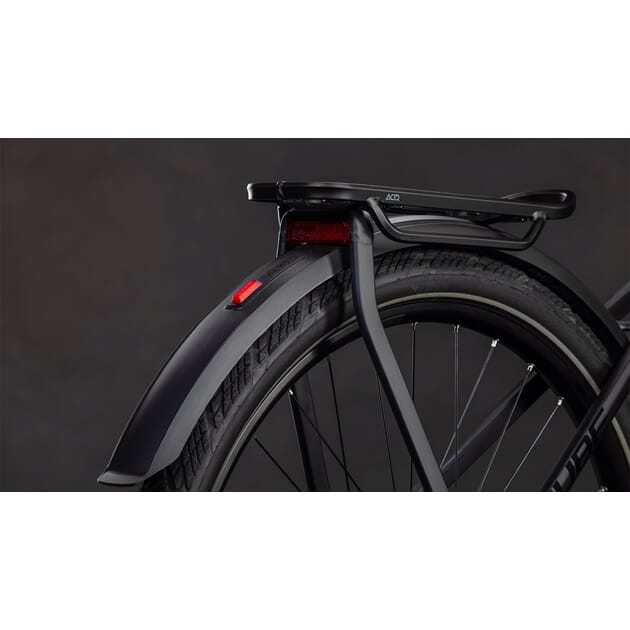

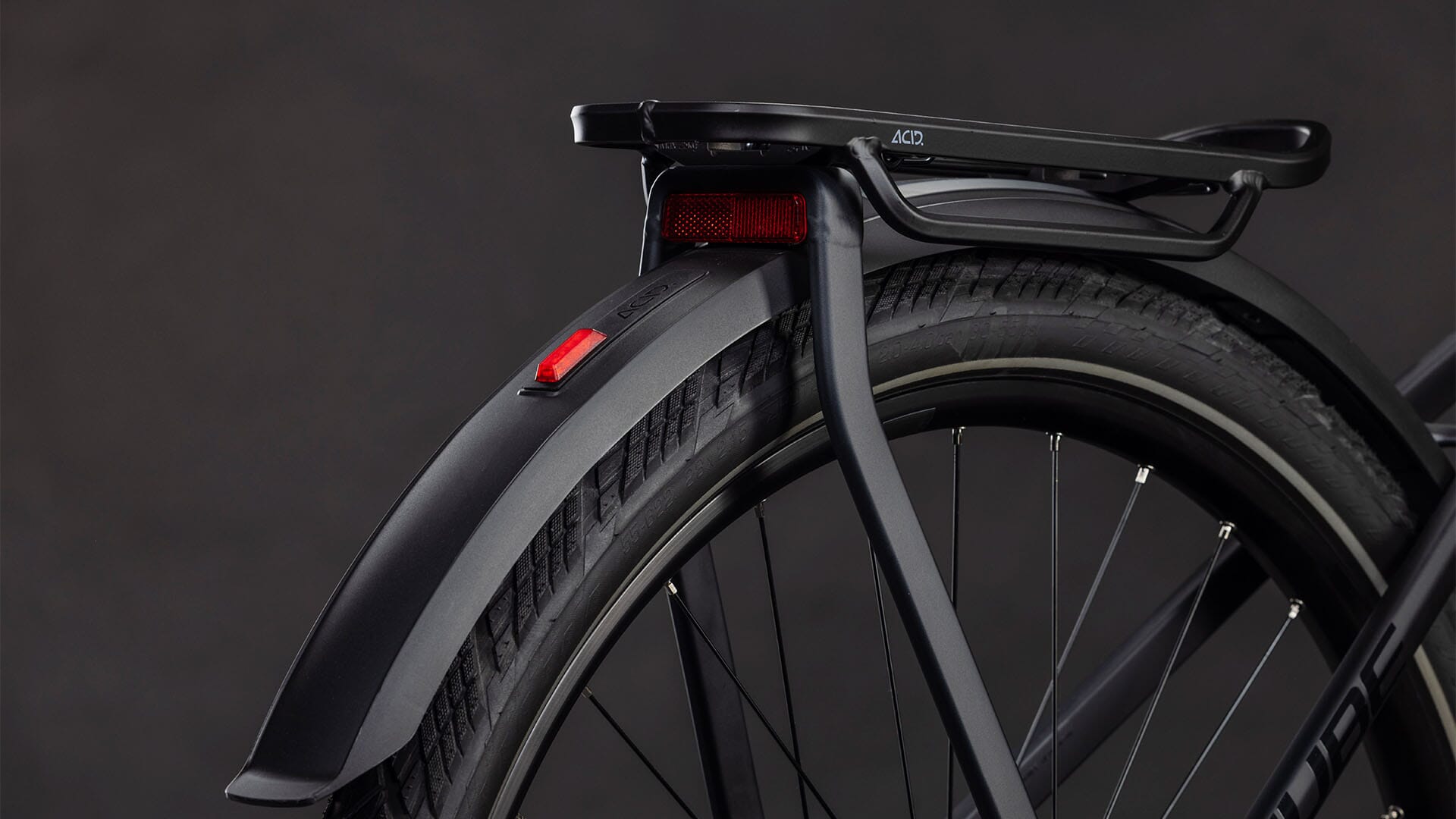

Integrated Carrier 3.0
The Integrated Carrier 3.0 is the next level in system integration: from the side, it's hard to tell where the luggage carrier ends and the mudguard begins. But it doesn't just look good, it's also incredibly strong and rigid. With an integrated spring clamp and CUBE Rilink ready adaptor for mounting bags and baskets, it transforms your CUBE into an adaptable and versatile load carrier.
Efficient Comfort Geometry
With our specially designed Efficient Comfort Geometry, cycling is a simple pleasure. Whether you're popping across town or exploring further afield, taking a ride with the family or with friends, for work or for pleasure, we've created a ride experience that will have you coming back for more.
Aluminium Superlite
CUBE's Aluminium Superlite starts with heat-treated 6061 aluminium, which has the qualities – high fatigue resistance, good stiffness, low weight and excellent strength – that are important for a bicycle frame. Then we make it into double butted tubes, to reduce weight without sacrificing any of its strength. The result? Exceptionally light, strong and tough frames.

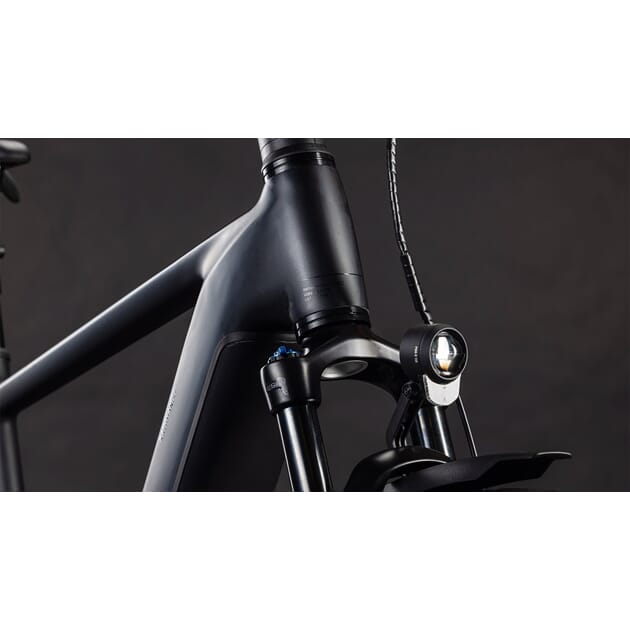

X-Connect
X-Connect is the simple way to attach a compatible ACID light to your CUBE bike. With a connector built into the headset and the wiring hidden in the frame, all that's left to do is attach the light, plug it in... and off you go. See and be seen, the easy way.
Størrelser:
Classic: 50 cm, 54 cm, 58 cm, 62 cm

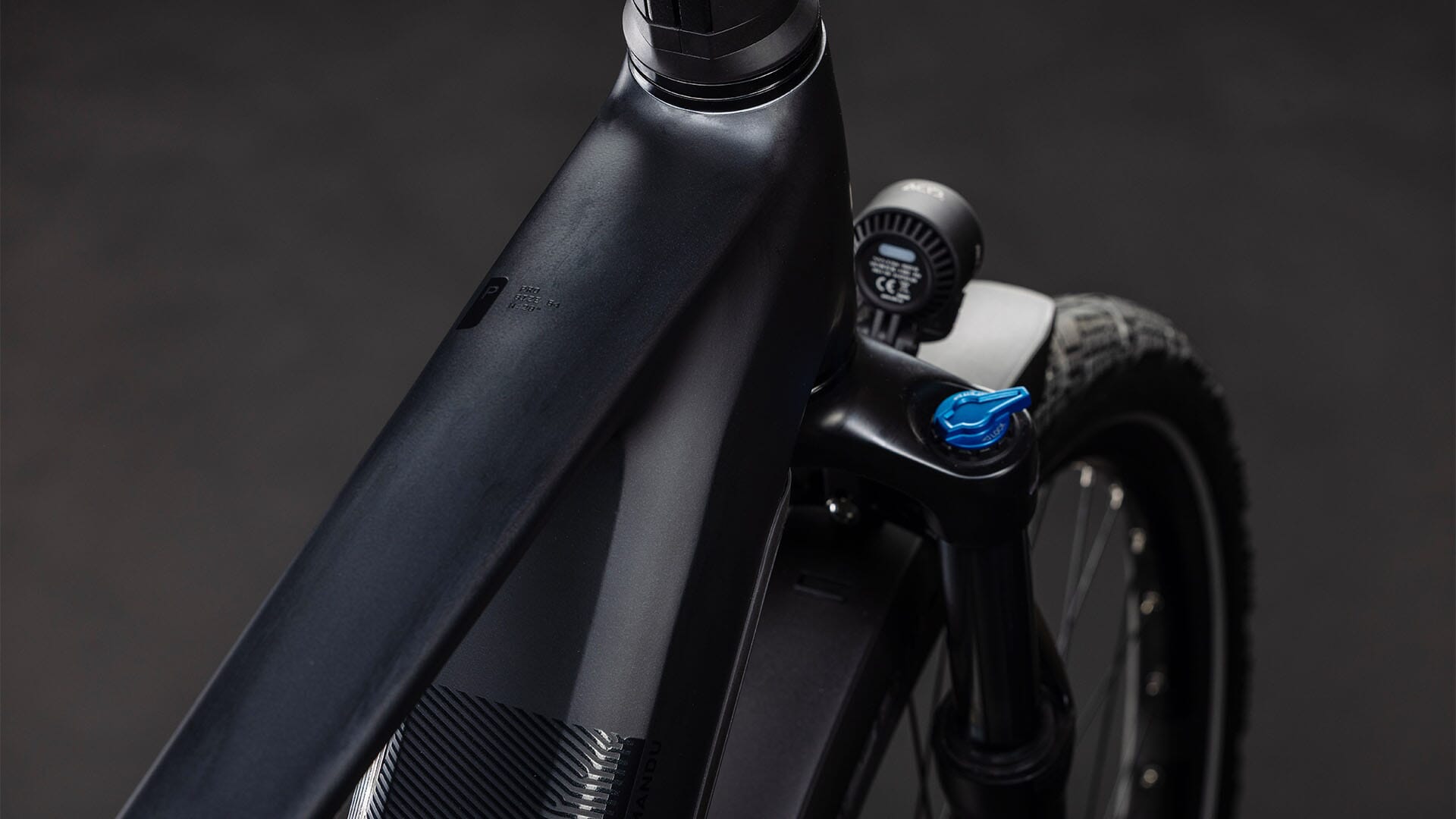

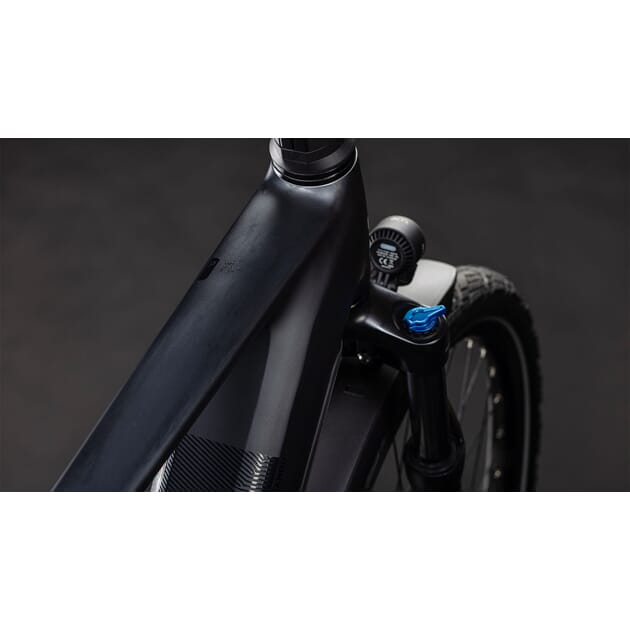

Demper
Dempegaffel:
SR Suntour NX1-32 LO Air, konisk, 15x110 mm, 100 mm
Elsykkelsystem
Motor:
Bosch Drive Unit Performance Line CX, maks. 100 Nm (BDU38)
Remote:
Bosch LED Remote
Batteri:
Bosch PowerTube 800
Display:
Bosch Kiox 500
Lader:
Bosch 2A
Drivverk & Bremser
Bremser:
Shimano BR-MT420, hydrauliske skivebremser (180/180)
Bakgir:
Shimano XT RD-M8100-SGS, ShadowPlus, 12-delt
Girhendler:
Shimano Deore SL-M6100-IR, Direct Attach
Kranksett:
ACID MTB Hybrid Pro, 40T
Kassett:
Shimano Deore CS-M6100, 10–51T
Kjede:
KMC e12
Cockpit
Styrelager:
ACROS AZF-1035, ICR (integrert kabelføring), topp Zero-Stack 1 1/2" (ZS 56 mm), bunn Zero-Stack 1 1/2" (ZS 56 mm), HIC
Stem:
CUBE Comfort Stem Pro, 31,8 mm, justerbar
Styre:
CUBE Comfort Trail Bar, 700 mm
Holker:
ACID Travel Comfort
Hjul
Hjulsett:
ACID SLX 25, 32/32 eiker, 15x110 mm / 12x148 mm, Tubeless Ready
Dekk:
Schwalbe Marathon Efficiency, PerfL, 55-622
Komponenter
Sadel:
ACID Sequence 180

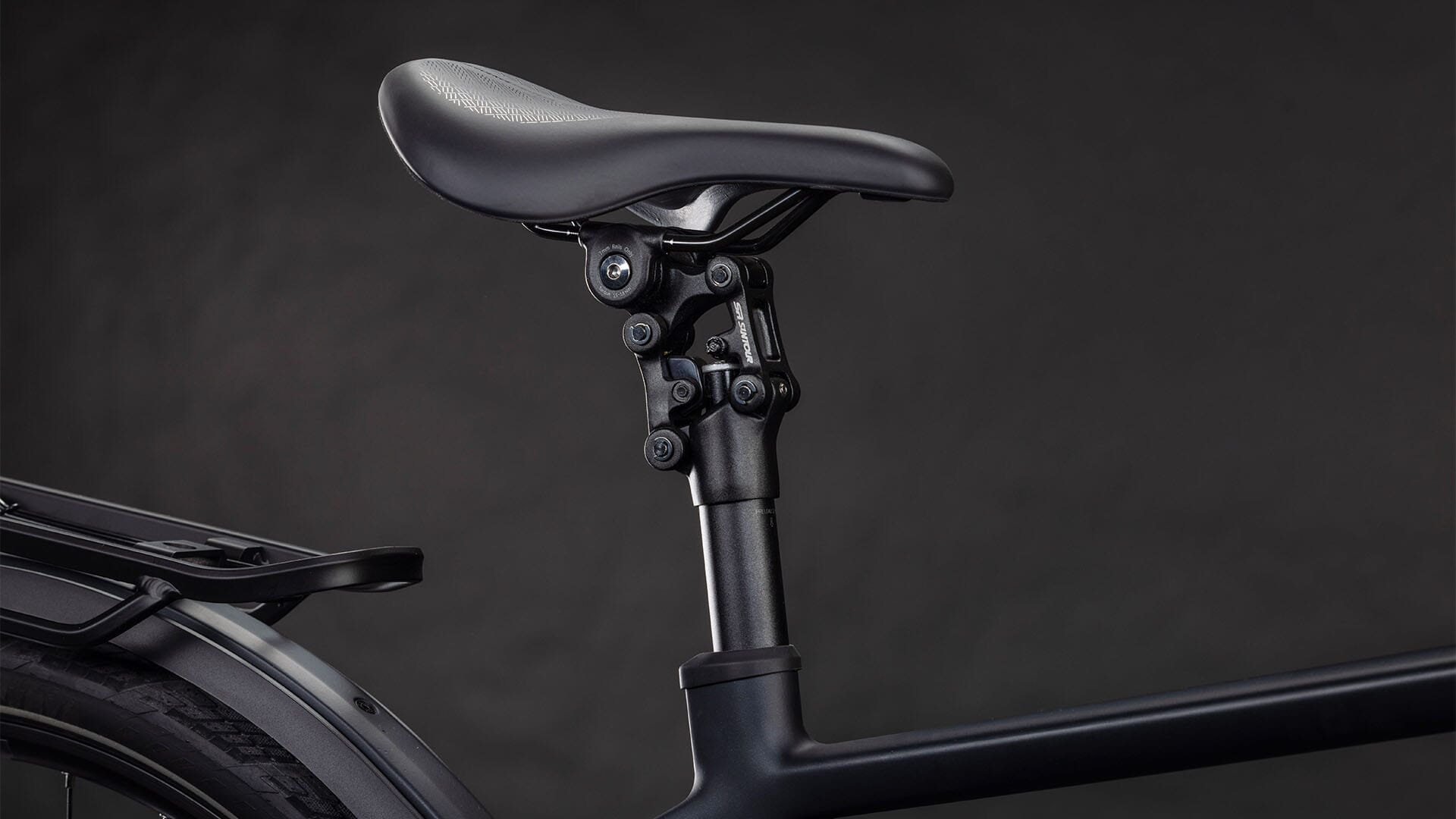

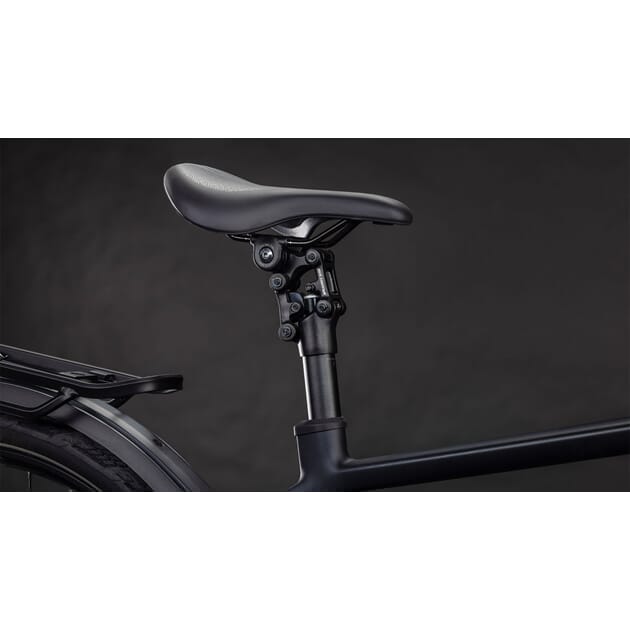

Setepinne:
SR Suntour NVX, 31,6 mm
Pedaler:
ACID PP Trekking

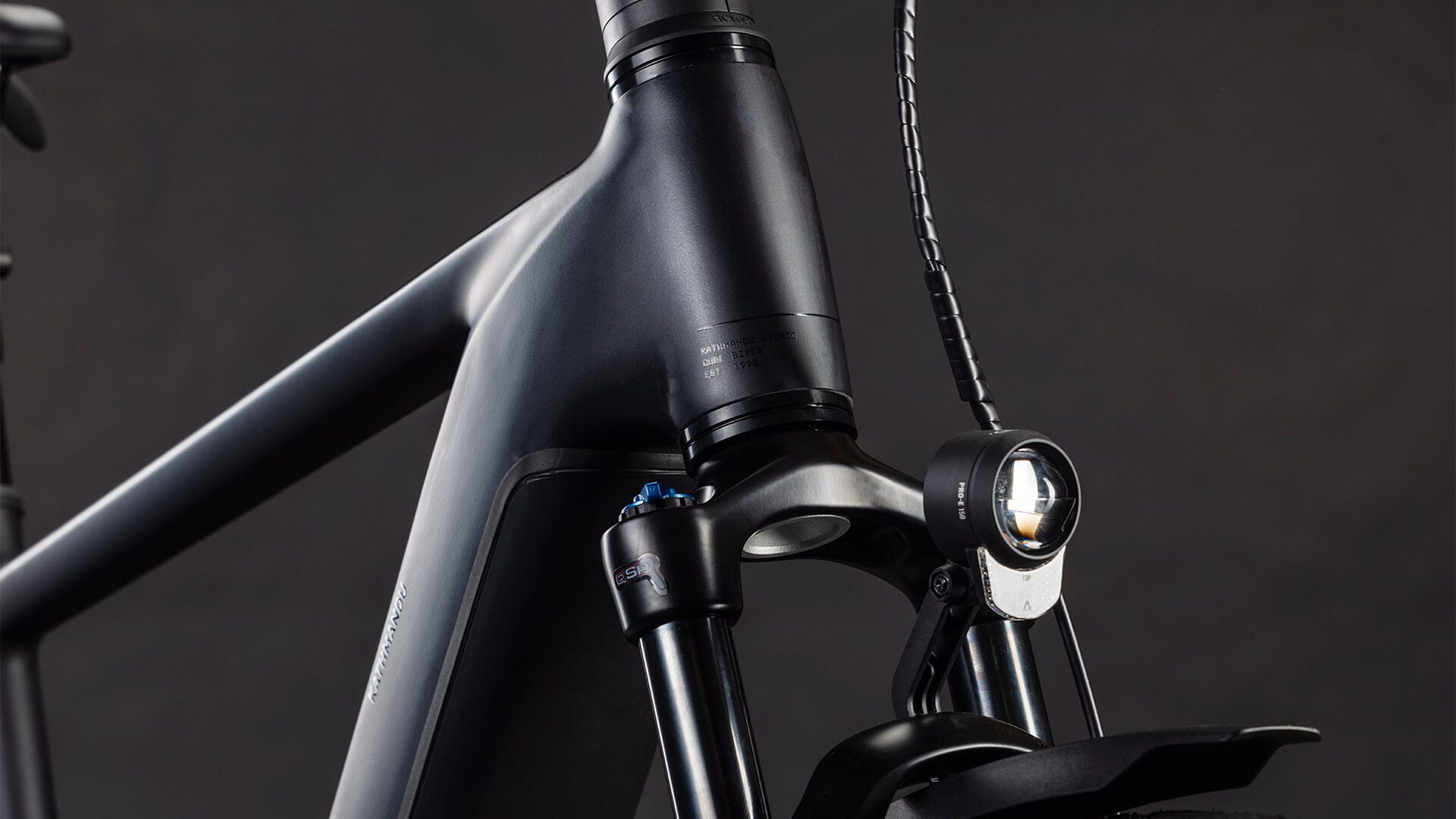

Frontlys:
ACID Front Light PRO-E 150 X-Connect, 12V DC
Baklys:
ACID Mudguard Rear Light PRO-E, 12V DC
Støtte:
ACID FM Pure Kickstand
Skjermer:
ACID 65 Integrated Carrier 3.0
Bjelle:
Reich Cycle Bells Ringsound
Bagasjebrett:
ACID Integrated Carrier 3.0, CUBE Adapter-kompatibel
Produktinformasjon
Farge:
coal´n´black
Vekt:
28,1 kg
Art. nr.:
112200
